Cannot provision aggregate in ONTAP System Manager with newly deployed cluster
Applies to
- ONTAP System Manager 9.8P9 and earlier
- ONTAP System Manager 9.9.1P2 and earlier
- ONTAP 9.8P9 and earlier
- ONTAP 9.9.1P2 and earlier
Issue
- Unable to provision an aggregate from either Node 1 or Node 2 using ONTAP System Manager.

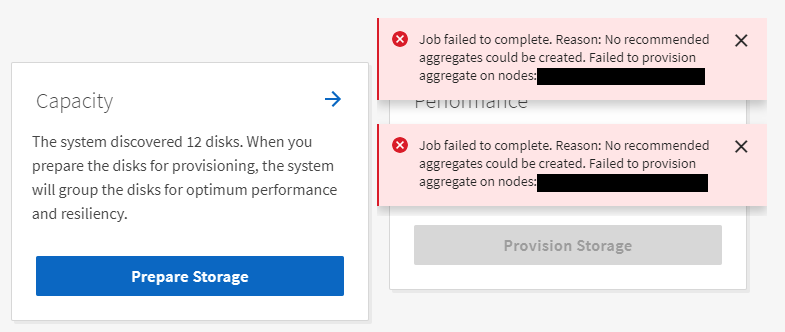

- Prepare Storage fails by error:
Job failed to complete. Reason: No recommended aggregates could be created. Failed to provision aggregate on nodes: <NODE>.
- Manual provisioning works via the ONTAP CLI.
Cluster-1::*> aggr create -aggregate Cluster_1_01_SAS_1 -encrypt-with-aggr-key true -disktype SAS -raidtype raid_dp -maxraidsize 11 -diskrpm 10000 -pool Pool0 -diskcount 11 -chksumstyle bloc
Info: The layout for aggregate "Cluster_1_01_SAS_1" on node "Cluster-1-01" would be:
First Plex
RAID Group rg0, 11 disks (block checksum, raid_dp)
Usable Physical
Position Disk Type Size Size
---------- ------------------------- ---------- -------- --------
shared 1.0.21 SAS - -
shared 1.0.5 SAS - -
shared 1.0.7 SAS 1.61TB 1.61TB
shared 1.0.9 SAS 1.61TB 1.61TB
shared 1.0.11 SAS 1.61TB 1.61TB
shared 1.0.13 SAS 1.61TB 1.61TB
shared 1.0.15 SAS 1.61TB 1.61TB
shared 1.0.17 SAS 1.61TB 1.61TB
shared 1.0.19 SAS 1.61TB 1.61TB
shared 1.0.3 SAS 1.61TB 1.61TB
shared 1.0.1 SAS 1.61TB 1.61TB
Aggregate capacity available for volume use would be 13.05TB.
Do you want to continue? {y|n}: y
[Job 1020] Job succeeded: DONE
- Auto-provisioning via the ONTAP CLI fails.
Cluster-1::> aggr auto-provision -verbose Per node summary of new aggregates to create, discovered spares, and also remaining spare disks and partitions after aggregate creation: New Total New -Discovered Spare- -Remaining Spare- Node Aggrs Usable Size Disks Partitions Disks Partitions ------------------ ----- ------------ ------ ----------- ------ ---------- Cluster-1-01 1 13.05TB 0 12 0 1 Cluster-1-02 1 13.05TB 0 12 0 1 ------------------ ----- ------------ ------ ----------- ------ ---------- Total: 2 26.10TB 0 24 0 2
Cluster-1::> storage aggregate show-auto-provision-progress Current Target Aggregate Usable Size Usable Size Provisioning Progress ---------------------------- ------------ ------------ ----------------------- Cluster_1_01_SAS_1 0B 13.05TB Failed Cluster_1_02_SAS_1 0B 13.05TB Failed Error: Provisioning "Cluster_1_01_SAS_1" failed. Reason: [Job 452] Job failed: Failed to create aggregate "Cluster_1_01_SAS_1" on "Cluster-1-01". Reason: There are not enough spare disks with matching RPM. 11 disks needed from one pool, but not enough matching disks of the requested size are available in either pool. Provisioning "Cluster_1_02_SAS_1" failed. Reason: [Job 453] Job failed: Failed to create aggregate "Cluster_1_02_SAS_1" on "Cluster-1-02". Reason: There are not enough spare disks with matching RPM. 11 disks needed from one pool, but not enough matching disks of the requested size are available in either pool.
