Is there an equivalent to volume latency in Unified Manager by using ONTAP CLI or SNMP?

  1. Last updated
    Mar 13, 2023
  2. Save as PDF
Views:
363
Visibility:
Public
Votes:
0
Category:
active-iq-unified-manager
Specialty:
om
Last Updated:
3/13/2023, 1:33:13 PM

Applies to

  • Active IQ Unified Manager
  • OnCommand Unified Manager
  • ONTAP 9

Answer

  • Unified Manager captures performance data every 5 minutes by retrieving ccma files that are generated on each node of a cluster
  • This is not real-time but based on one minute samples captured on the cluster.

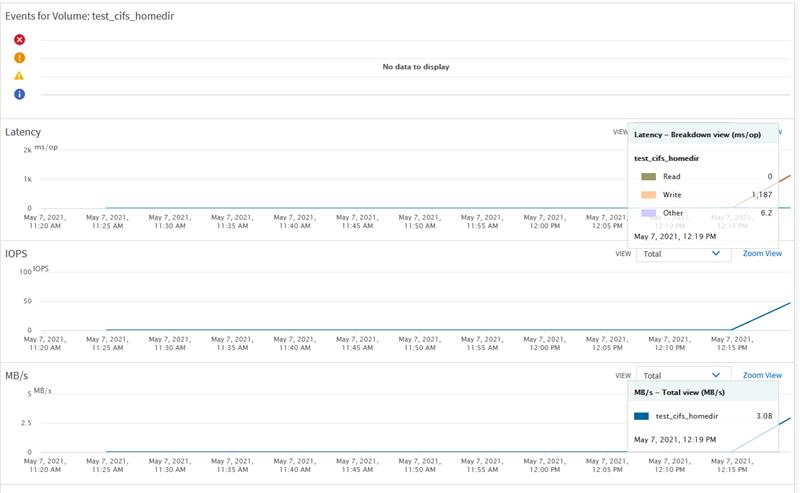

  • Navigate in Unified Manager to a particular volume and see the latency, iops, and throughput.
  • Switch to the breakdown charts to get further details such as read,write,other.



Active IQ Unified Manager

  • The closest equivalent via cli will be 'qos statistics volume performance show'
Cluster::> qos statistics volume performance show
Workload            ID     IOPS       Throughput    Latency
--------------- ------ -------- ---------------- ----------
-total-              -       54         3.38MB/s  1232.36ms
vol1-wid13990    13990       54         3.38MB/s  1232.36ms
-total-              -       54         3.38MB/s  1095.44ms
vol1-wid13990    13990       54         3.38MB/s  1095.44ms
-total-              -       54         3.38MB/s  1210.90ms
vol1-wid13990    13990       54         3.38MB/s  1210.90ms
-total-              -       54         3.38MB/s   887.71ms
vol1-wid13990    13990       54         3.38MB/s   887.71ms

Note: This may not match numbers seen in Unified Manager based on when the information is captured

Additional Information

N/A
