Two different IP subnets on the same port experience connectivity issues
Applies to
- ONTAP 9
Issue
- A Vserver has two iSCSI data LIFs, existing and a new one. The existing LIF IP is configured for 172.16.x.x range. The new LIF IP is configured for 10.128.x.x range. The IP on 172.x.x.x subnet is accessible and IP on 10.x.x.x subnet is not
svm-name
old_lif1 up/up 172.16.xy.xx/16 cluster-01 a0a true
old_lif2 up/up 172.16.xy.xx/16 cluster-02 a0a true
new_lif2 up/up 10.128.xy.xx/20 cluster-02 a0a true- There are two default routes configured for vserver
cluster::*> route show
Vserver Destination Gateway Metric
------------------- --------------- --------------- ------
svm-name
0.0.0.0/0 10.128.xx.xx 20

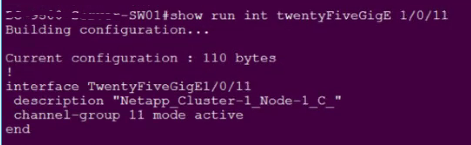

0.0.0.0/0 172.16.xx.xx 20- The switch side ports are configured for Channel-group, access mode and using default VLAN 1
