New HA pair setup with "dual NIC" option not using the extra card for cluster port

  1. Last updated
  2. Save as PDF
Views:
80
Visibility:
Public
Votes:
0
Category:
ontap-9
Specialty:
hw
Last Updated:

Applies to

  • ONTAP 9
  • ONTAP ASAr2
  • New setup
  • Any models with shared Cluster/HA ports and a "dual NIC" cluster port option

Issue

When setting up a new HA pair with an extra expansion card (NIC) for cluster/HA ports, the additional NIC is not auto-configured as a cluster/HA port.

The default ports for a "single NIC" configuration are both still utilized as the cluster/HA ports.

Example:

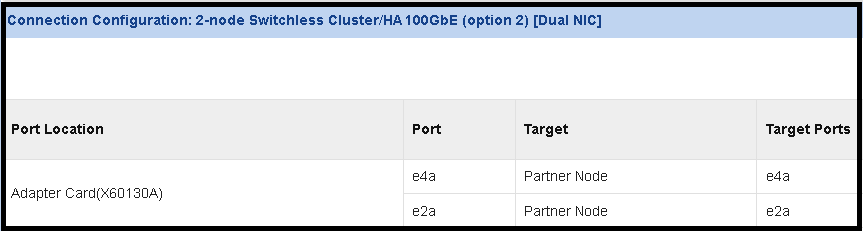

An AFF-C60 with the dual NIC cluster port option has a card in slot 2 to use e4a and e2a as the cluster/HA ports, per Hardware Universe.


The output of "network port show" reports e4a and e4b are the current cluster ports even with the new card installed in slot 2:

Node: localhost
Speed(Mbps) Health
Port      IPspace      Broadcast Domain Link MTU  Admin/Oper  Status
--------- ------------ ---------------- ---- ---- ----------- --------
e0M       Default      -                up   1500 auto/1000   -
e2a       Default      -                up   9000 auto/100000 -
e2b       Default      -                down 9000 auto/auto   -
e3a       Default      -                up   9000 auto/10000  -
e3b       Default      -                down 9000 auto/auto   -
e3c       Default      -                up   9000 auto/10000  -
e3d       Default      -                down 9000 auto/auto   -
e4a       Cluster      -                up   9000 auto/100000 -
e4b       Cluster      -                down 9000 auto/auto   -

Sign in to view the entire content of this KB article.
